מסוע עם מאווררים לקו SMT

תיאור המוצר

מסוע לקו SMT באורך 1 מטר, בעל יכולת להוות עמדת בחינה או חיבור בין מכונות. בחירת מצב העבודה נעשית על ידי ברר המורכב במסוע, בעל תנועה מצד שמאל לימין.

  • יכולת כיוונון רוחב המסוע, עשוי מחומרים ברמה גבוהה ועונה על דרישות הESD.
  • למסוע מערכת מאווררים המאפשרת קירור מעגלים היוצאים מהתנור.
  • בעל תקשורת SMEMA לחיבור המתאים לכל סוגי המכונות בקו.
  • תכנון מיוחד בכניסה וביציאה מהמסוע המאפשר תנועה חלקה, רציפה וללא מעצורים.
  • עומד בתקני הבטיחות האירופאים CE.

ספסיפיקציות

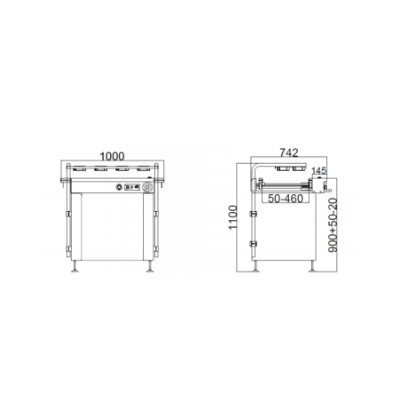

Machine size (L)1000x(W)750x(H)1100mm
PCB size 50*50~535*460mm. Width can be adjusted by hand wheel.
Transport direction Front rail fixed, transport from left to right or right to left. (option)
Transport height 900+50/-20mm,height adjusted by feet.
Transport rail Special aluminum rail, 3mm width edge pin chain for transferring.
Transport rail can hold Under 4KG
AC power AC220V/50-60HZ (single electric box control)
Transport motor ZD 25W speed adjustable motor.
Control system KEWEI PLC and PANASONIC sensor.
Inspect station With 150mm working station on the front of rail.
Cooling fan setting install 8pcs 120*120mm of fans on the rail.
Frameworks 1.5mm metal sheet welded, electrostatic powder coating on the surface.
Standard

SMEMA
