Product description

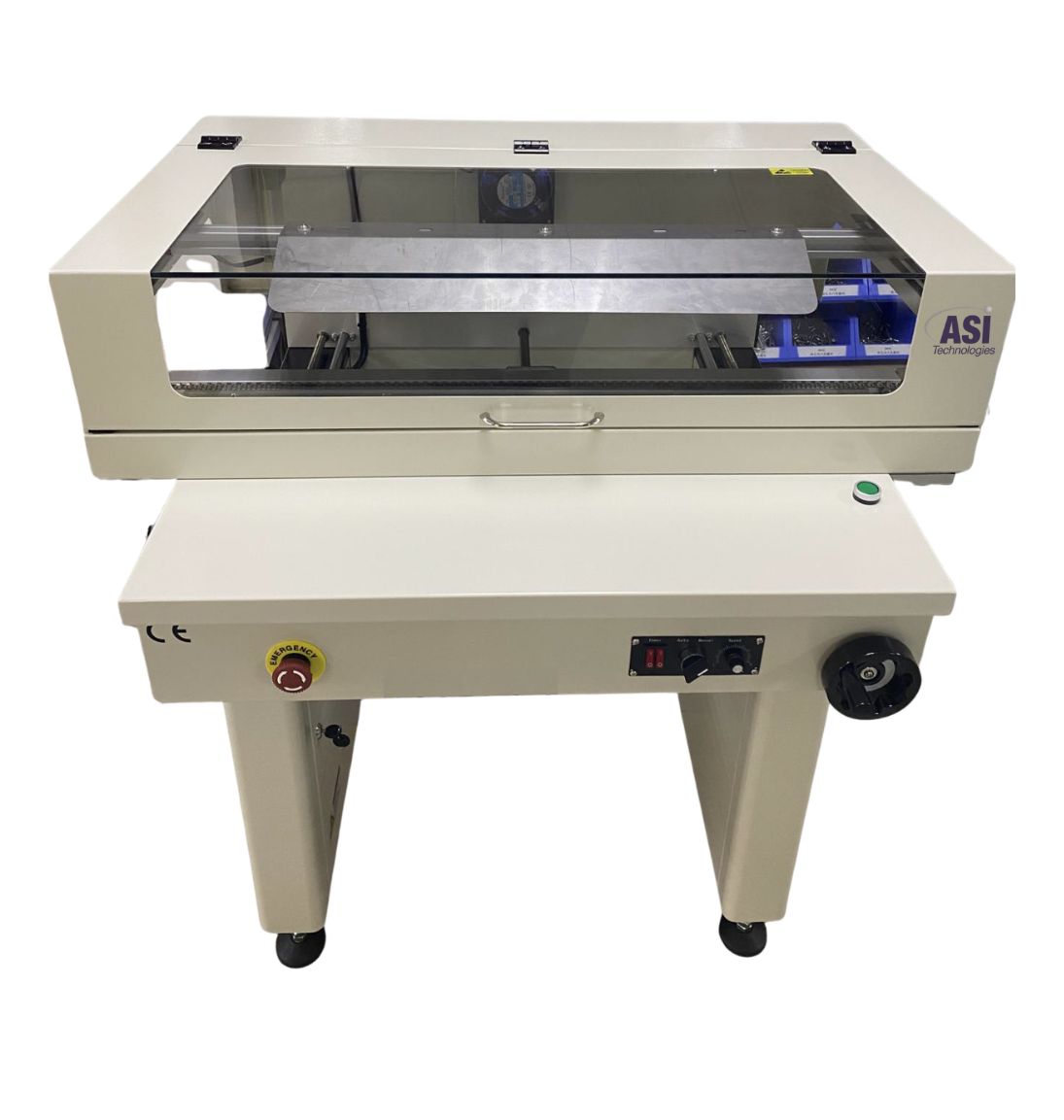

The ASI-UV1-CF is a compact 1.0-meter inspection chain conveyor designed for PCB
handling, inspection, and buffering within SMT production lines. A protective top cover
with integrated lighting and a cooling fan provides a controlled environment for visual
inspection.
The conveyor supports both manual mode, where a PCB stops at the inspection station
for operator review, and automatic mode, where PCBs transfer directly downstream
upon signal. Built with a welded steel frame, aluminum rails, and pin-chain transport,
the ASI-UV1-CF integrates easily into SMT lines via standard SMEMA interface.
- PCB inspection and linking conveyor for SMT production lines
- Manual and automatic operating modes
- Protective top cover with 2 integrated lighting

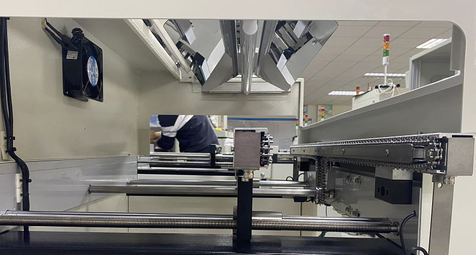

- Internal cooling fan (120 × 120 mm)
- 3 PCB detection sensors
- Adjustable PCB width via handwheel
- Pin-chain transport system with fixed front rail
- KEWEI PLC control with Panasonic sensors
- Standard SMEMA interface
