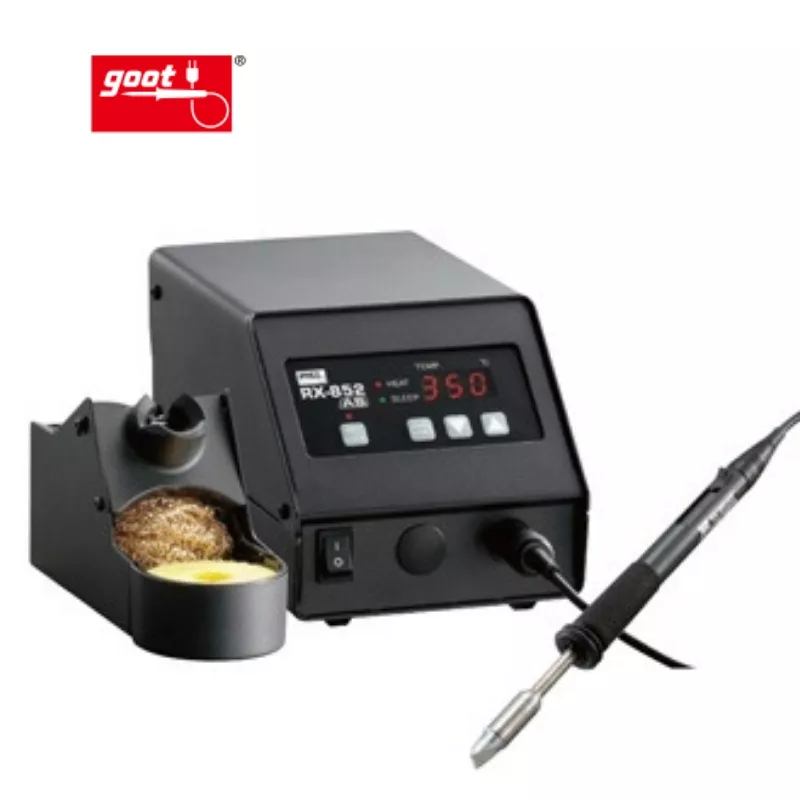

Goot | RX-852AS Soldering Station 150W

תיאור המוצר

Phenomenal heat recovery with 150W compact high-output heater.
Excellent heat recovery has been achieved by combining a 150W compact high-output heater with a high-sensitivity sensor.

Included:

Station Unit, Soldering Iron (RX-85GAS / Tip is not included), Soldering Iron Stands (ST-21) Brass Wool & Sponges included, Inlet Power Cord

Features:

Fastest in Its Class
Reaches 350°C in only 14 seconds. (Only 6 seconds when using RX-80HRT tips.)
Light and Compact Handpiece
Same size as the RX-80GAS.

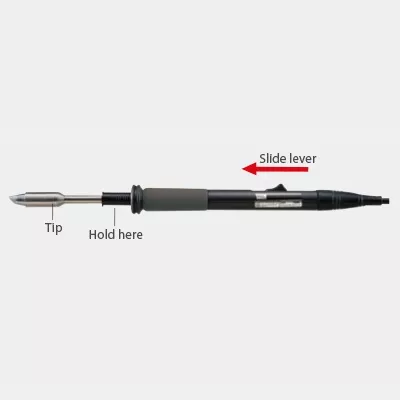

Tip Replacement without Tools (PAT.)
Slide-change tip. Easy to replace a hot tip without any other tools.
Thick Tip Coating for Lead-free Soldering
All tips have extra-thick iron plating, to resist erosion by lead-free solder.

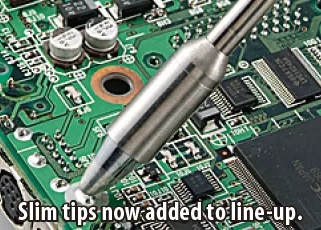

RX-80HRT Tips also Available
More than 40 tips are available, including the RX-80HRT tips.

מידע נוסף

Manufacturer	GOOT Soldering Systems

ספסיפיקציות


Model	RX-852AS
Voltage	110–120V, 220–240V AC 50/60Hz
Power Consumption	145–170W
Power Cord Length	1.5m inlet type
Temperature Setting Range	50–450°C
Ripple temperature	±5˚C (unloaded)
Insulation Resistance	Over 100MΩ (500V DC)
Accessories	Soldering Iron Stand (ST-21)

Control Unit
Output Voltage	24V AC
Dimensions	116(W) × 105(H) × 194(D)mm
Weight	4.8kg

Soldering Unit
Voltage / Consumption	24V AC / 150W
Ground Resistance	Less than 2Ω
Leak Voltage	Less than 2mV
Heater	Nichrome heater
Cord Length	1.5m
Length	174mm (with RX-85HRT-5D)
Weight	39g (with RX-85HRT-5D)
