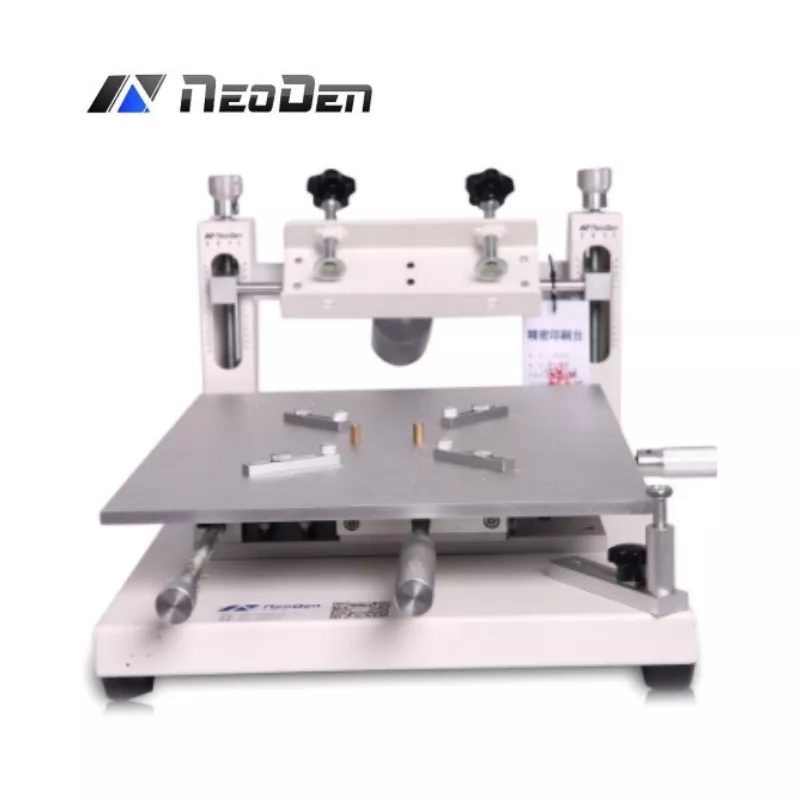

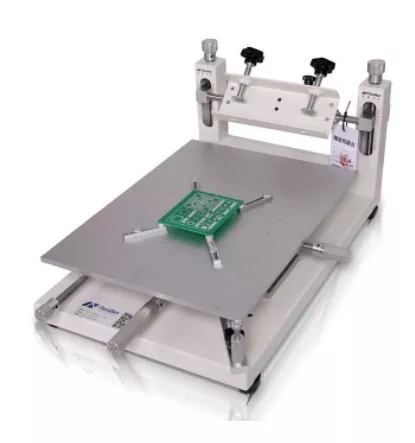

NEODEN | PM3040 Stencil printer

תיאור המוצר

  • The same platform as printer can be selectable, easy to locate both single and double sides of PCB board, high flexibility ensure high printing precision;
  • The steel stencil can be rotated 30 degrees at most, and the precision can be kept all the way when repeat works, can be comparable with automatic machine;
  • Using the way of steel stencil movement to adjust the best position, combining with the fine adjustment of X-axis Y-axis to correct, convenient and efficient;
  • The frame made of thickened sheet metal, finest material, good quality with  outstanding durability, the brackets using the bolt bar to adjust the height, convenient for controlling the thickness of PCB

P/N 62381

מידע נוסף

Manufacturer

ספסיפיקציות

Items NeoDen 3040
Dimensions 580×320×260(mm)
Platform Size 300×400(mm)
PCB Size 250×300(mm)
Template Size 370×470(mm)
Printing speed Labor control
PCB Thickness 0~100(mm)
PCB Tuning range Front/ Side +10mm
Platform height 180(mm)
Repeatability ±0.01mm
Positioning mode Outside/Reference hole
Fine Adjustment Range Z-axis ±45mm  X-axis ±35mm  Y-axis ±45mm
Weight 14Kg
