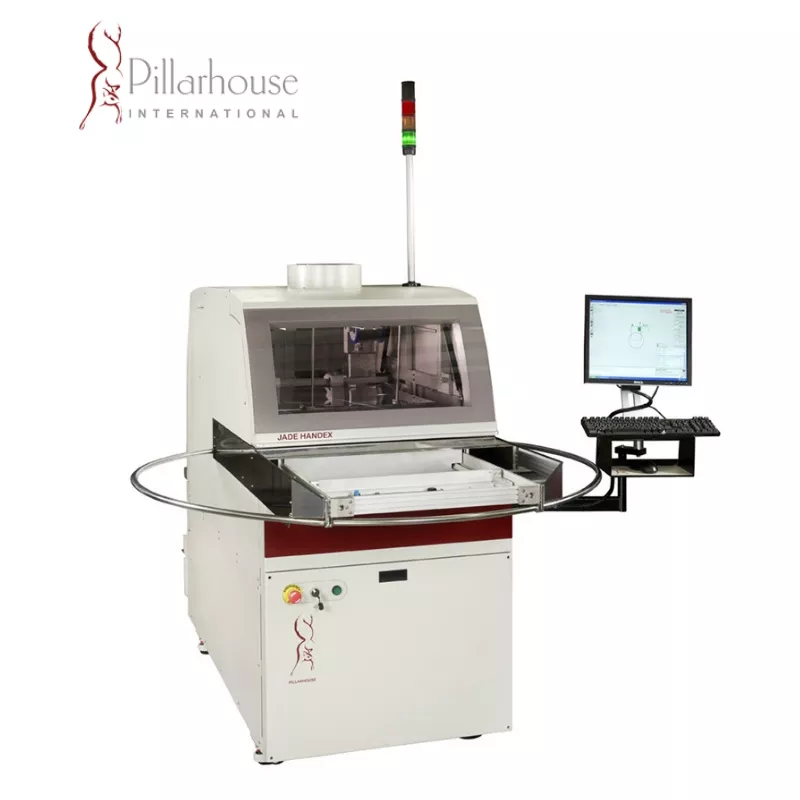

Designed to meet the needs of lean manufacturing, the Jade-Handex offers high speed flexible throughput at minimal cost.
The Jade-Handex is equipped with a revolutionary twin PCB rotary table transport system to allow simultaneous load / unload during product processing.
Our new generation patented drop-jet design fluxer offers quick and effective flushing of the pressurised flux chamber. This helps to keep maintenance levels to a minimum whilst enabling use of higher solids content fluxes as well as water soluble fluxes.
As part of the entry level philosophy for this system, a newly designed low maintenance solder bath and pump mechanism has been developed which moves in three axes of movement whilst not limiting access to the PCB. Solder is applied using proven technology through our AP-1 nozzle design or custom specialised nozzles, incorporating patented spiral solder return to bath technology offering reduced solder balling potential.
As with more sophisticated Pillarhouse systems, the soldering process is enhanced by an inerted hot Nitrogen curtain which provides an inert atmosphere for the soldering process and also assists in the prevention of oxidation. This process provides a local pre-heat to the joint thus reducing thermal shock to localised components.
The Jade-Handex is controlled by a PC, through PillarCOMM, a Windows® based “Point & Click” interface with PCB image display, as illustrated below. Additionally, our PillarPAD offline package allows the operator to produce programs independently from the machine using Gerber data.
Standard Features
- Integral PC and machine mounted TFT monitor
- Auto solder top up & level detect
- Inerted Nitrogen system
- Drop-jet fluxer
- Set of AP-1 solder nozzle tips
- Internal fume extraction
- Colour programming camera
- Rotary indexing table with twin work holding positions
- PillarCOMM windows software
- Manual fiducial correction system
- Multiple level password protection
- PillarPAD offline programming system
- Flux level sensor
- Process viewing camera with record feature
- Solder wave height measurement and correction system
- Lead free capability
- Day-to-day service kit
Monitoring Options
- Flux presence sensor – thermistor style
- Flux spray monitoring
- Flux flow monitoring
- Flux spray & flow monitoring
- O2ppm monitoring
- Pump rpm monitoring
- Nitrogen flow monitoring
System Options
- Ultrasonic fluxing
- Dual drop-jet / ultrasonic fluxing
- Top side instant I.R. pre-heat
- Bottom side slide in / slide out I.R. pre-heat
- Pyrometer closed loop temperature control
- Automatic fiducial correction system
- Laser board warpage control
- Solder reel identification
- Solder bath coding (identifies correct bath for program)
- Encoders on X, Y and Z axis
- Nitrogen generator
P/N 62214
